@@ -0,0 +1,359 @@
|
|
|
+<!DOCTYPE html>
|
|
|
+<html lang="en">
|
|
|
+ <head>
|
|
|
+ <title>Rapier.js terrain heightfield demo</title>
|
|
|
+ <meta charset="utf-8">
|
|
|
+ <meta name="viewport" content="width=device-width, user-scalable=no, minimum-scale=1.0, maximum-scale=1.0">
|
|
|
+ <link type="text/css" rel="stylesheet" href="main.css">
|
|
|
+ <style>
|
|
|
+ body {
|
|
|
+ color: #333;
|
|
|
+ }
|
|
|
+ </style>
|
|
|
+ </head>
|
|
|
+ <body>
|
|
|
+ <div id="container"></div>
|
|
|

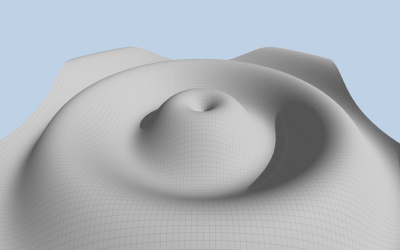

+ <div id="info">Rapier.js physics terrain heightfield demo</div>
|
|
|
+
|
|
|
+ <script type="importmap">
|
|
|
+ {
|
|
|
+ "imports": {
|
|
|
+ "three": "../build/three.module.js",
|
|
|
+ "three/addons/": "./jsm/"
|
|
|
+ }
|
|
|
+ }
|
|
|
+ </script>
|
|
|
+
|
|
|
+ <script type="module">
|
|
|
+
|
|
|
+ import * as THREE from 'three';
|
|
|
+ import Stats from 'three/addons/libs/stats.module.js';
|
|
|
+ import { OrbitControls } from 'three/addons/controls/OrbitControls.js';
|
|
|
+ import { RapierPhysics } from 'three/addons/physics/RapierPhysics.js';
|
|
|
+
|
|
|
+ // Heightfield parameters
|
|
|
+ const terrainWidthExtents = 100;
|
|
|
+ const terrainDepthExtents = 100;
|
|
|
+ const terrainWidth = 128;
|
|
|
+ const terrainDepth = 128;
|
|
|
+ const terrainHalfWidth = terrainWidth / 2;
|
|
|
+ const terrainHalfDepth = terrainDepth / 2;
|
|
|
+ const terrainMaxHeight = 8;
|
|
|
+ const terrainMinHeight = - 2;
|
|
|
+
|
|
|
+ // Graphics variables
|
|
|
+ let container, stats;
|
|
|
+ let camera, scene, renderer;
|
|
|
+ let terrainMesh;
|
|
|
+ const clock = new THREE.Clock();
|
|
|
+
|
|
|
+ // Physics variables
|
|
|
+ let physics;
|
|
|
+ const dynamicObjects = [];
|
|
|
+ let heightData = null;
|
|
|
+
|
|
|
+ let time = 0;
|
|
|
+ const objectTimePeriod = 3;
|
|
|
+ let timeNextSpawn = time + objectTimePeriod;
|
|
|
+ const maxNumObjects = 30;
|
|
|
+
|
|
|
+ init();
|
|
|
+
|
|
|
+ async function init() {
|
|
|
+
|
|
|
+ heightData = generateHeight( terrainWidth, terrainDepth, terrainMinHeight, terrainMaxHeight );
|
|
|
+ initGraphics();
|
|
|
+ await initPhysics();
|
|
|
+ // Start animation loop only after physics is initialized
|
|
|
+ renderer.setAnimationLoop( animate );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ function initGraphics() {
|
|
|
+
|
|
|
+ container = document.getElementById( 'container' );
|
|
|
+ renderer = new THREE.WebGLRenderer( { antialias: true } );
|
|
|
+ renderer.setPixelRatio( window.devicePixelRatio );
|
|
|
+ renderer.setSize( window.innerWidth, window.innerHeight );
|
|
|
+ // Remove setAnimationLoop from here since we'll start it after physics init
|
|
|
+ renderer.shadowMap.enabled = true;
|
|
|
+ container.appendChild( renderer.domElement );
|
|
|
+
|
|
|
+ stats = new Stats();
|
|
|
+ stats.domElement.style.position = 'absolute';
|
|
|
+ stats.domElement.style.top = '0px';
|
|
|
+ container.appendChild( stats.domElement );
|
|
|
+
|
|
|
+ camera = new THREE.PerspectiveCamera( 60, window.innerWidth / window.innerHeight, 0.2, 2000 );
|
|
|
+ scene = new THREE.Scene();
|
|
|
+ scene.background = new THREE.Color( 0xbfd1e5 );
|
|
|
+
|
|
|
+ camera.position.y = heightData[ terrainHalfWidth + terrainHalfDepth * terrainWidth ] * ( terrainMaxHeight - terrainMinHeight ) + 5;
|
|
|
+ camera.position.z = terrainDepthExtents / 2;
|
|
|
+ camera.lookAt( 0, 0, 0 );
|
|
|
+
|
|
|
+ const controls = new OrbitControls( camera, renderer.domElement );
|
|
|
+ controls.enableZoom = false;
|
|
|
+
|
|
|
+ const geometry = new THREE.PlaneGeometry( terrainWidthExtents, terrainDepthExtents, terrainWidth - 1, terrainDepth - 1 );
|
|
|
+ geometry.rotateX( - Math.PI / 2 );
|
|
|
+
|
|
|
+ const vertices = geometry.attributes.position.array;
|
|
|
+
|
|
|
+ for ( let i = 0, j = 0, l = vertices.length; i < l; i ++, j += 3 ) {
|
|
|
+
|
|
|
+ vertices[ j + 1 ] = heightData[ i ];
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ geometry.computeVertexNormals();
|
|
|
+
|
|
|
+ const groundMaterial = new THREE.MeshPhongMaterial( { color: 0xC7C7C7 } );
|
|
|
+ terrainMesh = new THREE.Mesh( geometry, groundMaterial );
|
|
|
+ terrainMesh.receiveShadow = true;
|
|
|
+ terrainMesh.castShadow = true;
|
|
|
+ scene.add( terrainMesh );
|
|
|
+
|
|
|
+ const textureLoader = new THREE.TextureLoader();
|
|
|
+ textureLoader.load( 'textures/grid.png', function ( texture ) {
|
|
|
+
|
|
|
+ texture.wrapS = THREE.RepeatWrapping;
|
|
|
+ texture.wrapT = THREE.RepeatWrapping;
|
|
|
+ texture.repeat.set( terrainWidth - 1, terrainDepth - 1 );
|
|
|
+ groundMaterial.map = texture;
|
|
|
+ groundMaterial.needsUpdate = true;
|
|
|
+
|
|
|
+ } );
|
|
|
+
|
|
|
+ const ambientLight = new THREE.AmbientLight( 0xbbbbbb );
|
|
|
+ scene.add( ambientLight );
|
|
|
+
|
|
|
+ const light = new THREE.DirectionalLight( 0xffffff, 3 );
|
|
|
+ light.position.set( 100, 100, 50 );
|
|
|
+ light.castShadow = true;
|
|
|
+ const dLight = 200;
|
|
|
+ const sLight = dLight * 0.25;
|
|
|
+ light.shadow.camera.left = - sLight;
|
|
|
+ light.shadow.camera.right = sLight;
|
|
|
+ light.shadow.camera.top = sLight;
|
|
|
+ light.shadow.camera.bottom = - sLight;
|
|
|
+ light.shadow.camera.near = dLight / 30;
|
|
|
+ light.shadow.camera.far = dLight;
|
|
|
+ light.shadow.mapSize.x = 1024 * 2;
|
|
|
+ light.shadow.mapSize.y = 1024 * 2;
|
|
|
+ scene.add( light );
|
|
|
+
|
|
|
+ window.addEventListener( 'resize', onWindowResize );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ function onWindowResize() {
|
|
|
+
|
|
|
+ camera.aspect = window.innerWidth / window.innerHeight;
|
|
|
+ camera.updateProjectionMatrix();
|
|
|
+ renderer.setSize( window.innerWidth, window.innerHeight );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ async function initPhysics() {
|
|
|
+
|
|
|
+ physics = await RapierPhysics();
|
|
|
+
|
|
|
+ // Create the terrain body using RapierPhysics module
|
|
|
+ physics.addHeightfield( terrainMesh, terrainWidth - 1, terrainDepth - 1, heightData, { x: terrainWidthExtents, y: 1.0, z: terrainDepthExtents } );
|
|
|
+
|
|
|
+ // Continue with adding other dynamic objects as needed
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ function generateHeight( width, depth, minHeight, maxHeight ) {
|
|
|
+
|
|
|
+ const size = width * depth;
|
|
|
+ const data = new Float32Array( size );
|
|
|
+ const hRange = maxHeight - minHeight;
|
|
|
+ const w2 = width / 2;
|
|
|
+ const d2 = depth / 2;
|
|
|
+ const phaseMult = 12;
|
|
|
+ let p = 0;
|
|
|
+
|
|
|
+ for ( let j = 0; j < depth; j ++ ) {
|
|
|
+
|
|
|
+ for ( let i = 0; i < width; i ++ ) {
|
|
|
+
|
|
|
+ const radius = Math.sqrt( Math.pow( ( i - w2 ) / w2, 2.0 ) + Math.pow( ( j - d2 ) / d2, 2.0 ) );
|
|
|
+ const height = ( Math.sin( radius * phaseMult ) + 1 ) * 0.5 * hRange + minHeight;
|
|
|
+ data[ p ] = height;
|
|
|
+ p ++;
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ return data;
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ function generateObject() {
|
|
|
+
|
|
|
+ const numTypes = 3; // cones not working
|
|
|
+ const objectType = Math.ceil( Math.random() * numTypes );
|
|
|
+ let threeObject = null;
|
|
|
+ const objectSize = 3;
|
|
|
+ let radius, height;
|
|
|
+
|
|
|
+ switch ( objectType ) {
|
|
|
+
|
|
|
+ case 1: // Sphere
|
|
|
+ radius = 1 + Math.random() * objectSize;
|
|
|
+ threeObject = new THREE.Mesh( new THREE.SphereGeometry( radius, 20, 20 ), createObjectMaterial() );
|
|
|
+ break;
|
|
|
+ case 2: // Box
|
|
|
+ const sx = 1 + Math.random() * objectSize;
|
|
|
+ const sy = 1 + Math.random() * objectSize;
|
|
|
+ const sz = 1 + Math.random() * objectSize;
|
|
|
+ threeObject = new THREE.Mesh( new THREE.BoxGeometry( sx, sy, sz, 1, 1, 1 ), createObjectMaterial() );
|
|
|
+ break;
|
|
|
+ case 3: // Cylinder
|
|
|
+ radius = 1 + Math.random() * objectSize;
|
|
|
+ height = 1 + Math.random() * objectSize;
|
|
|
+ threeObject = new THREE.Mesh( new THREE.CylinderGeometry( radius, radius, height, 20, 1 ), createObjectMaterial() );
|
|
|
+ break;
|
|
|
+ default: // Cone
|
|
|
+ radius = 1 + Math.random() * objectSize;
|
|
|
+ height = 2 + Math.random() * objectSize;
|
|
|
+ threeObject = new THREE.Mesh( new THREE.ConeGeometry( radius, height, 20, 2 ), createObjectMaterial() );
|
|
|
+ break;
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ // Position objects higher and with more randomization to prevent clustering
|
|
|
+ threeObject.position.set(
|
|
|
+ ( Math.random() - 0.5 ) * terrainWidth * 0.6,
|
|
|
+ terrainMaxHeight + objectSize + 15 + Math.random() * 5, // Even higher with randomization
|
|
|
+ ( Math.random() - 0.5 ) * terrainDepth * 0.6
|
|
|
+ );
|
|
|
+
|
|
|
+ const mass = objectSize * 5;
|
|
|
+ const restitution = 0.3; // Add some bounciness
|
|
|
+
|
|
|
+ // Add to scene first
|
|
|
+ scene.add( threeObject );
|
|
|
+
|
|
|
+ // Add physics to the object
|
|
|
+ physics.addMesh( threeObject, mass, restitution );
|
|
|
+
|
|
|
+ // Store the object for later reference
|
|
|
+ dynamicObjects.push( threeObject );
|
|
|
+
|
|
|
+ // Force a small delay before adding the next object
|
|
|
+ timeNextSpawn = time + 0.5;
|
|
|
+
|
|
|
+ threeObject.receiveShadow = true;
|
|
|
+ threeObject.castShadow = true;
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ function createObjectMaterial() {
|
|
|
+
|
|
|
+ const c = Math.floor( Math.random() * ( 1 << 24 ) );
|
|
|
+ return new THREE.MeshPhongMaterial( { color: c } );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ function animate() {
|
|
|
+
|
|
|
+ render();
|
|
|
+ stats.update();
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ function render() {
|
|
|
+
|
|
|
+ const deltaTime = clock.getDelta();
|
|
|
+
|
|
|
+ // Generate new objects with a delay between them
|
|
|
+ if ( dynamicObjects.length < maxNumObjects && time > timeNextSpawn ) {
|
|
|
+
|
|
|
+ // Generate object directly in this frame
|
|
|
+ generateObject();
|
|
|
+ // timeNextSpawn is now set in generateObject()
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ // Clean up objects that have fallen off the terrain
|
|
|
+ for ( let i = dynamicObjects.length - 1; i >= 0; i -- ) {
|
|
|
+
|
|
|
+ const obj = dynamicObjects[ i ];
|
|
|
+ if ( obj.position.y < terrainMinHeight - 10 ) {
|
|
|
+
|
|
|
+ // Remove from scene and physics world
|
|
|
+ scene.remove( obj );
|
|
|
+ dynamicObjects.splice( i, 1 );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ updatePhysics();
|
|
|
+ renderer.render( scene, camera );
|
|
|
+ time += deltaTime;
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ function updatePhysics() {
|
|
|
+
|
|
|
+ // Check for objects that might need help with physics
|
|
|
+ for ( let i = 0, il = dynamicObjects.length; i < il; i ++ ) {
|
|
|
+
|
|
|
+ const objThree = dynamicObjects[ i ];
|
|
|
+
|
|
|
+ // If object is not moving but should be (based on height), try to fix it
|
|
|
+ if ( objThree.position.y > 1.0 ) {
|
|
|
+
|
|
|
+ // Check if physics body exists
|
|
|
+ if ( objThree.userData && objThree.userData.physics && objThree.userData.physics.body ) {
|
|
|
+
|
|
|
+ const body = objThree.userData.physics.body;
|
|
|
+
|
|
|
+ // Make sure body is awake
|
|
|
+ if ( typeof body.wakeUp === 'function' ) {
|
|
|
+
|
|
|
+ body.wakeUp();
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ // Check velocity and apply impulse if needed
|
|
|
+ if ( typeof body.linvel === 'function' ) {
|
|
|
+
|
|
|
+ const velocity = body.linvel();
|
|
|
+ const speed = Math.sqrt( velocity.x * velocity.x + velocity.y * velocity.y + velocity.z * velocity.z );
|
|
|
+
|
|
|
+ // If object is very slow, give it a stronger impulse
|
|
|
+ if ( speed < 0.5 ) {
|
|
|
+
|
|
|
+ body.applyImpulse( { x: 0, y: - 2.0, z: 0 }, true );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ } else {
|
|
|
+
|
|
|
+ // If the object doesn't have a physics body but should, recreate it
|
|
|
+ const mass = 5; // Default mass
|
|
|
+ const restitution = 0.3; // Default restitution
|
|
|
+
|
|
|
+ // Recreate physics for the object
|
|
|
+ physics.addMesh( objThree, mass, restitution );
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ }
|
|
|
+
|
|
|
+ </script>
|
|
|
+ </body>
|
|
|
+</html>
|
